DIG-DOG DSL20C Mini Track Skid Steer 855 Kg

Item No.: DSL20C
  • KEY SPECS::
    Operating Weight: 855 kg
    Bucket capacity: 0.12 m³
    Rated Power: 23 hp
Description Specification FAQ Review
Description

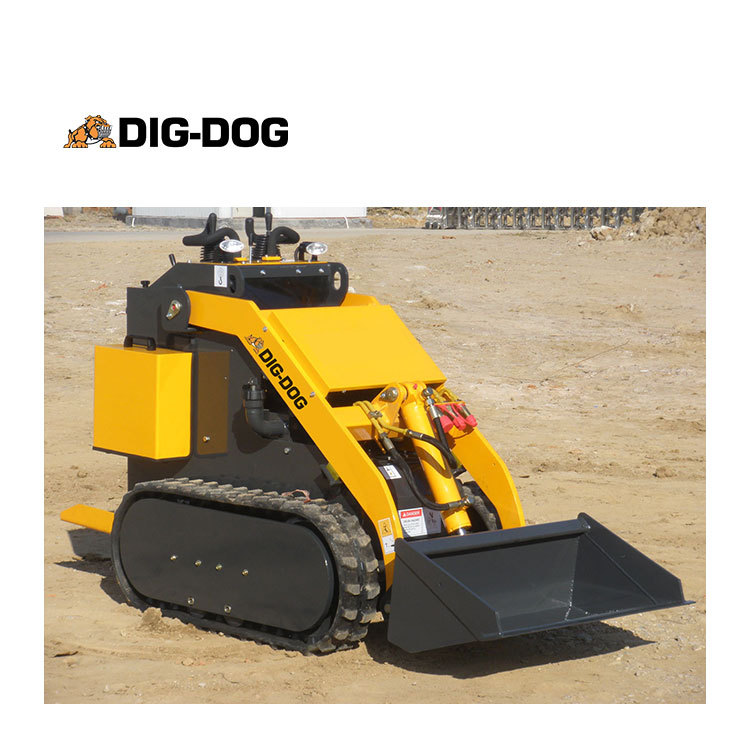

DIG-DOG DSL20C Stand On Mini Track Skid Steer Loader

Stand-on Skid Steer | Mini Track Loader | DIG-DOG

DSL20C Overview

DIG-DOG DSL20C stand on skid steer(mini skid steer) is a multi-functional mini track loader. The body is small and easy to control. It can be easily and quickly attached to a variety of different functions to achieve various tasks. It is widely used in gardens, manufacturing, and construction. Sites, recycling, gardens, roads, construction, farms and other industrial fields. With more hydraulic power directed to attachment sand a construction-grade design that eases operator maintenance and boosts comfort, the DSL20C mini skid steer improves versatility, productivity. DSL20C is minimizing your downtime and increasing your ROl, making it the ultimate member of any crew.

DSL20C Features & Benefits

1.DIG-DOG DSL20C stand on mini track skid steer loaders are easy to operate. The handle handle the walking, lifting and somersault movements; Plunger pump motor, smooth; Four-wheel drive, adapted to various environments; Various forms of foot pedal, so that the operation is more safe and convenient; Servo and standard two modes of operation.
2.The mini track loader is easy to maintain The oil square oil outlet is outside the car body, convenient replacement of air filter, oil, machine filter, spark plug; The rear guard plate is easy to take down, and the upper cover can be opened.
3.The mini skid steer can be configured with a variety of accessories, and the accessories are interchangeable, there are about 40 kinds, unified hanger fast change fast connection.
4.The international famous brand of the engine, stable and reliable, quality warranty.
5.For a variety of tires and track modes for selection, stronger adaptability.
6.The mini skid steer is narrower, only 800mm wide. Can pass through the strip, and has large fuel tanks and lifts.
7.The machine can do a large degree of simplified manual work, improve efficiency.
8.Compared with similar products, with a higher lifting height.

DSL20C Attachments

The stand on mini track skid steer can realize the functions of loading, digging, forklifting, bulldozing, digging, ditching, planing, crushing, cleaning, compacting, loosening, mixing and concrete delivery pump.
1、Material loading and unloading attachments (fork shovel, standard bucket, combination shovel, sieve shovel)
2、Municipal attachments (angled sweepers, closed sweepers, crushing hammers, vibratory compactors, milling machines, trenchers, snow pushers, snow throwers, ice breakers, vibratory ice breakers)
3、Construction attachments (excavators, mixers, disk trenchers, digging arms, bulldozers)
4、Logistics attachments (holding forks, tandem bars, soft pack clamps, crane hooks, side shifting forklifts)
5、Gardening and agricultural attachments (grass forks, tree removers, graders, lawn mowers, rototillers, augers)
Stand-on Skid Steer | Mini Track Loader | DIG-DOG
Stand-on Skid Steer | Mini Track Loader | DIG-DOG
Stand-on Skid Steer | Mini Track Loader | DIG-DOG

Company Profile


Stand-on Skid Steer | Mini Track Loader | DIG-DOG

DIG-DOG, DIG LOVE BUILD DREAM!

DIG-DOG is a branch of BONOVO Group. We have an independent brand and are dedicated to excavation projects in the construction machinery market.

DIG-DOG can provide excavators, wheel loaders, backhoe loaders, skid steer loaders, forklifts for the construction machinery industry, so that you can buy not only a single machine, but also full range of multi-functional and customized attachments to deal with different work requirements.

DIG-DOG machinery products exported more than 80 countries, and DIG-DOG has our own brand agents in North America, South America, Europe and many other regions,and we welcome more friends to become our brand agents. We can provide customers with more convenient and comprehensive after-sales service. Choose DIG-DOG to make your excavation work more easier and more convenient, and choose DIG-DOG to fully realize the possibility of configuring more accessories for the machine.

Specification
When you want to buy or rent a stand-on mini track skid steer, you need to pay attention to some important parameters in order to understand the performance and suitability of the machine.
First, you need to pay attention to the rated bucket capacity and rated load capacity. These two parameters determine the loader's ability to load materials.
Secondly, the overall machine working quality and dimensional parameters such as wheelbase, wheelbase, minimum ground clearance, size, etc. are crucial to the movement and operating performance of the machine.
In addition, the engine model and power determine the power and operating efficiency of the loader, while the fuel tank volume and hydraulic oil tank volume affect the continuous operation time and maintenance cycle. Tire size and driving speed determine the mini track skid steer's driving ability and applicability in various operating environments.
Finally, understanding the after-sales service and maintenance requirements of a product can ensure that your purchase and use process goes more smoothly. When choosing a stand-on mini track skid steer, be sure to consider these parameters in order to choose the model that best suits your needs.
Stand On Mini Skid Steer | Track Loader | DIG-DOG DSL20C

DIG-DOG Stand On Mini Track Skid Steer Loader

Model

DSL20C

Operating weight

855kg

Max lifting Force(kg)

200 Kg

Bucket capacity

0.12 m3

Max lifting power

375 Kg

speed

0-5.5 Km/h

Rated power

21HP/23HP

Rotating speedrpm

3600

NoiseDb

≤95

Hydraulic pressureMpa

17

Max working heightA

2065mm

Max pin height B

1803 mm

Max dump heightC

1386 mm

The highest point discharge distanceD

471mm

Bucket swing angleβ

55°

Bucket unloading angleγ

32°

Opening-closing angleθ

33°

Angle of departureα

18°

Total height H

1309mm

The height from the groundF

123mm

Wheelbase G

690 mm

No bucket lengthJ

1778 mm

Total width W

800 mm

Bucket width K

820 mm

Total lengthL)(with bucket

2210 mm

Turning radius (R)

1236mm

Related Models

Mini Track Skid Steer 855 Kg Mini Skid Steer Loader 1400 Kg Mini Track Skid Steer 855 Kg Mini Track Skid Steer 1400 Kg
FAQ
1. Are You Original Manufacture?
Yes, DIG-DOG is a Manufacturer In Construction Machinery In China And We Have The Wholeseries Earth Moving Machines You Need.
2.Which Incoterms Terms Can We Work?
Normally We Work On FOB, CFR, CIF.
3.Which Payment Terms Do You Accept?
Normally We Can Work On T/T Term Or L/C Term.
4.What About The Warranty Time?
12 Months After Shipment Or 2000 Working Hours.
5.What About The Delivery Time?
7-30 Days After Receiving The Deposit.
6.What About The Minimum Order Quantity Of DSL20C Mini Track Loader?
The MOQ Is 1 Pcs.
7.What To Look For When Buying A Stand-on Skid Steer?
The purpose of the machine
-Type of material being moved
-Assess The load.
-Look At The Controls.
-Assess Other Functional Features.
-Think About The Attachments For Your Mini Skid Steer.
8. Price Difference?
The product prices on the website fluctuate due to factors such as raw material costs. Please refer to the quotation from the business person in charge.
